SunFounder Pironman 5

The Pironman 5 includes the Pi5 NVMe PIP (PCIe Peripheral Board), a PCIe adapter board specifically designed for NVMe solid-state drives. This board supports four sizes of NVMe SSDs: 2230, 2242, 2260, and 2280, all of which can be installed in an M.2 M key slot. The connection is certified for Gen 2.0 speeds (5 GT/sec), but can be forced to Gen 3.0 (10 GT/sec) for faster performance.

Compatible NVMe SSDs include:
ADATA Legend 700, 800, and XPG SX8200 Pro
Axe Memory Generic Drive
Crucial P2, P3, P3 Plus M.2
Inland PCIe NVMe SSD
KIOXIA EXCERIA and EXCERIA G2 NVMe SSD
Kingston KC3000, NV2
Lexar NM710, NM620
Netac NV3000, NV2000 NVMe SSD
Origin Inception TLC830 Pro NVMe SSD
Pineberry Pi Pinedrive (2280)
PNY CS1030
Sabrent Rocket 4.0, Rocket Nano
Samsung 970 EVO Plus, 980, 980 Pro
Team MP33
Western Digital SN850, SN740, SN570, SN530, and Black
SN750 SE (Phison Controller), and Blue SN550/SN580 series
(If you know how to install the latest rpi-eeprom updates, pieeprom-2024-01-24.bin fixed the Western Digital Blue SN550 nvme boot issue. For more information, visit https://forums.raspberrypi.com/viewtopic.php?t=364327)XPG GAMMIX S70 BLADE, SX8200 Pro

Thông tin sản phẩm

      SunFounder Pironman 5 NVMe M.2 SSD PCIe Mini PC Case for Raspberry Pi 5 Hailo-8L AI accelerator with Tower Cooler+Dual RGB Fans

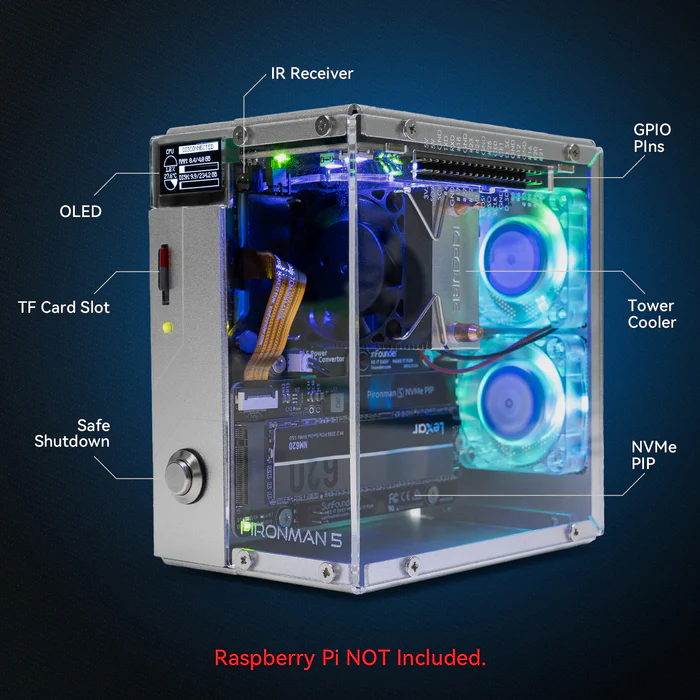

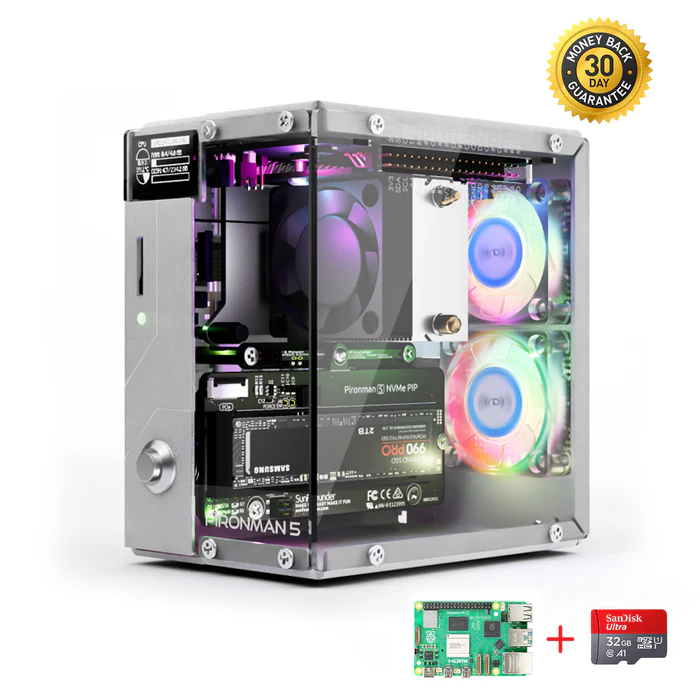

  • Raspberry Pi 5 Mini PC Case: Enhance your Raspberry Pi 5 with the Pironman 5, crafted from durable aluminum with advanced cooling, NVMe M.2 SSD support, OLED display, customizable RGB lighting, dual standard HDMI ports, and a secure power switch. It is fully compatible with the Hailo-8L AI accelerator, enabling powerful edge AI applications. Assembly is simple with a clear, step-by-step guide, ensuring easy setup. Ideal for NAS, Home Assistant, Media, Game Centers, and AI-driven projects.
  • Expandable NVMe M.2 Slot: Boost your Raspberry Pi 5 with an easy-to-install NVMe M.2 slot, supporting sizes 2230, 2242, 2260, and 2280. It also supports the Hailo-8L AI accelerator for advanced edge AI applications and faster performance.
  • Advanced Cooling System: Keep your Raspberry Pi 5 cool and stylish with Pironman 5’s tower cooler and dual RGB fans, equipped with dust filters for durability and easy maintenance. Designed for long-lasting performance, it efficiently dissipates heat under heavy loads, keeps fan noise low, and provides excellent ventilation to cool both the Raspberry Pi 5 and NVMe SSD and Hailo-8L AI accelerator
  • OLED Display for Instant Insights: The Pironman 5 includes a 0.96” OLED display, providing immediate updates on CPU and RAM usage, temperature, IP address, and more.

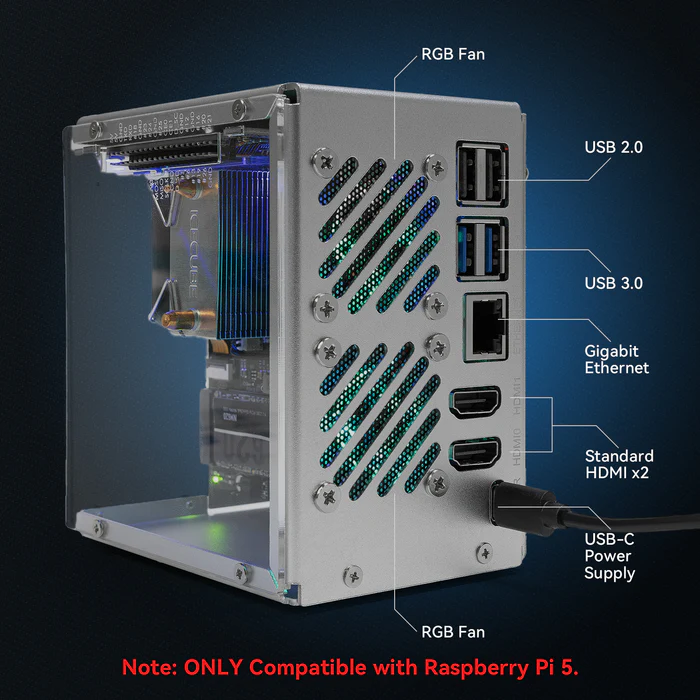

  • Enhanced Functionality and Safety: The Pironman 5 secures your Raspberry Pi 5 with features like safe shutdown, customizable RGB LEDs, HDMI ports, an IR receiver, and an external GPIO extender, enhancing functionality and connectivity. The manufacturer offers comprehensive technical support, including online courses and video tutorials, ensuring users can easily assemble and use their Pironman 5 with confidence.
